►Overview

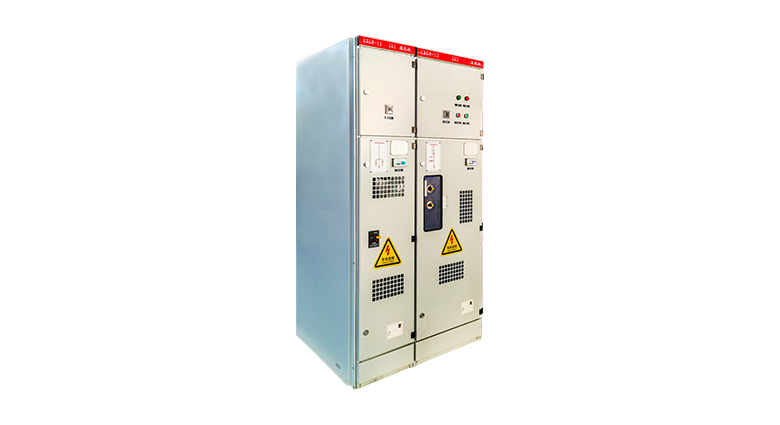

The CXGN-12 box type fixed AC metal enclosed switchgear is a high-voltage equipment of the delivery substation independently developed by our company. The cabinet adopts a combination assembly structure of C and G shapes, which can flexibly use various main wiring schemes to save processing time for the delivery substation combination, thereby greatly improving the lead time.
CXGN-12 switchgear is a protective fixed metal enclosed high-voltage switchgear widely used in the starting, switching and operation of high-voltage motors. It can be operated frequently and has no danger of explosion, fire, etc. Suggest pairing it with our independently developed vacuum load switch and vacuum circuit breaker.
►Product features
Rational structure：The skeleton is made of thin steel plate bent into shape and assembled by high-strength bolts and nuts, with high mechanical strength and light weight.
Safe and reliable：The surface of the cabinet is powder coated, which is corrosion-resistant, antioxidant, and has a beautiful appearance.
Flexible operation：There are reliable mechanical "five prevention" interlocks between the circuit breaker, grounding switch and door, and the operation is flexible.
Excellent applicability：Easy installation and maintenance, with a long maintenance cycle. The solutions are complete and convenient to combine, meeting the requirements of various distribution systems.

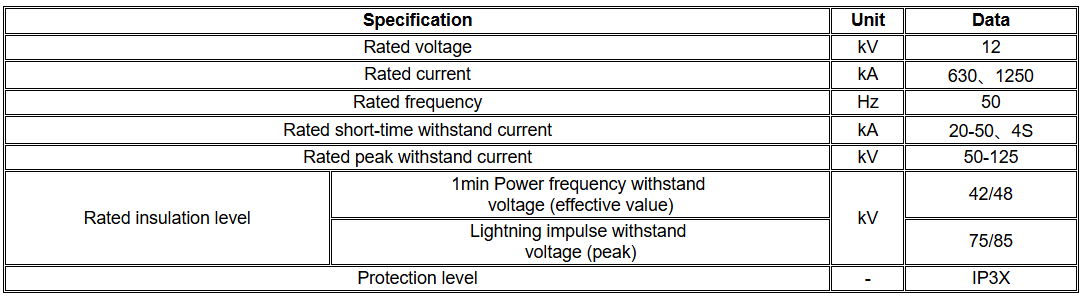

►Technical parameter
