►Introduction

Made of high-quality raw materials by layered injection molding, the 15kV/630A Shielded Front Connector is suitable for ring main units, delivery-type substations, cable branch boxes and other occasions. With electric performance higher than national standards, it is easy to be installed and forms a fully sealed and shielded structure after installation, ensuring safety, aesthetics and excellent performance.

►IntroductionFeatures

- Satisfactorily solving the problem of electric field stress concentration at high-voltage connections and fractures in cables’ outer shielded layer;

- Made of high-quality EPDM rubbers, which presents excellent performance in resistance against electric corona, free discharge and weather;

- Fully insulated, fully sealed, and fully shielded.

►Model Description

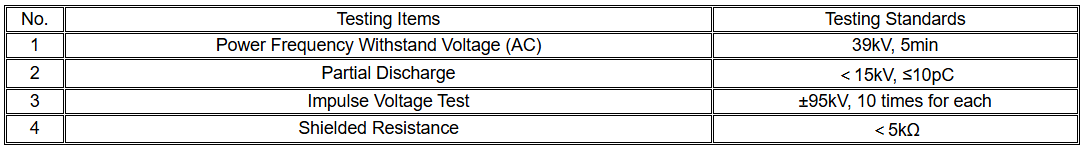

►Main Electric Performance

►Dimensions and Pictures
