►Overview

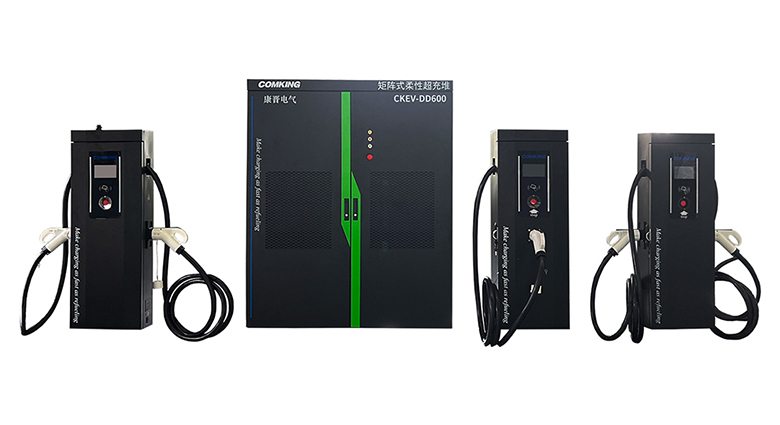

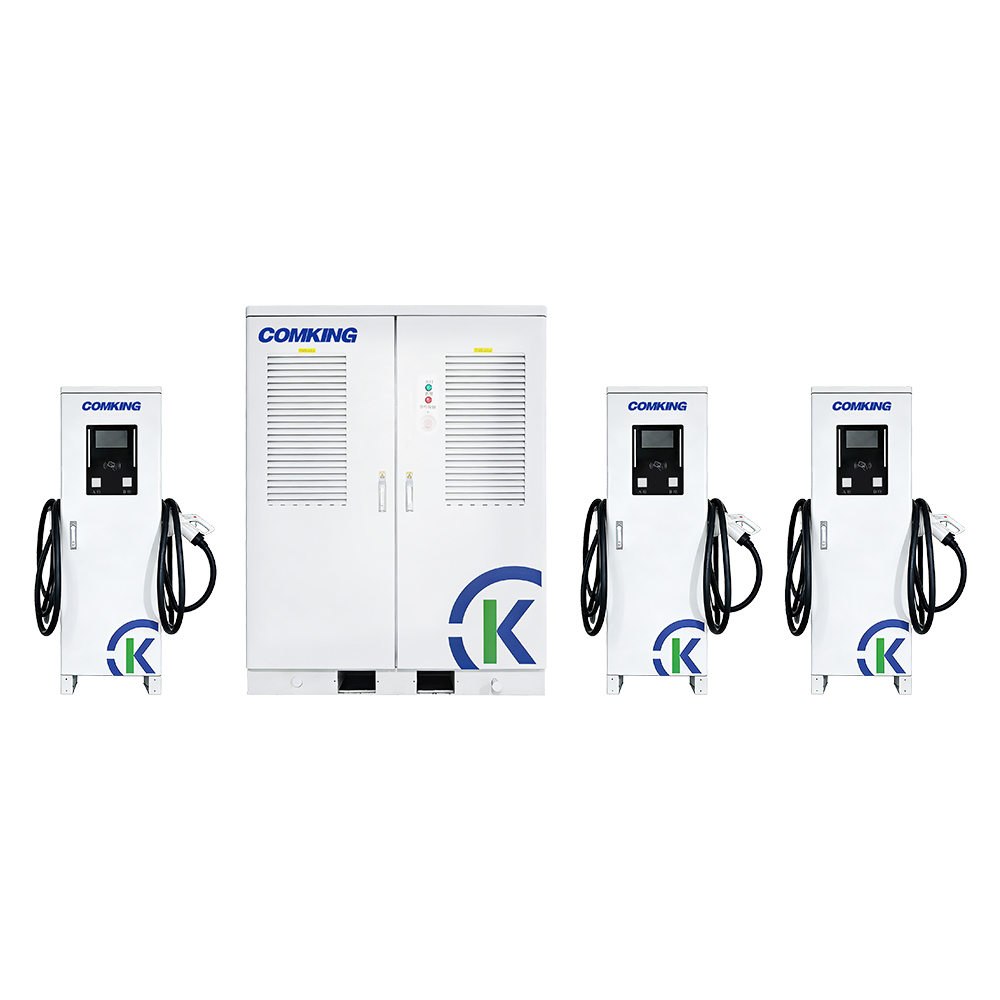

The split-type charging stack system covers 240kW~1200kW with 2~16 output channels, using full matrix PDU dynamic allocation modules to effectively improve charging power utilization. The entire system supports optional air-cooled and liquid-cooled supercharging terminals, providing comprehensive product solutions for fast and super charging scenarios.

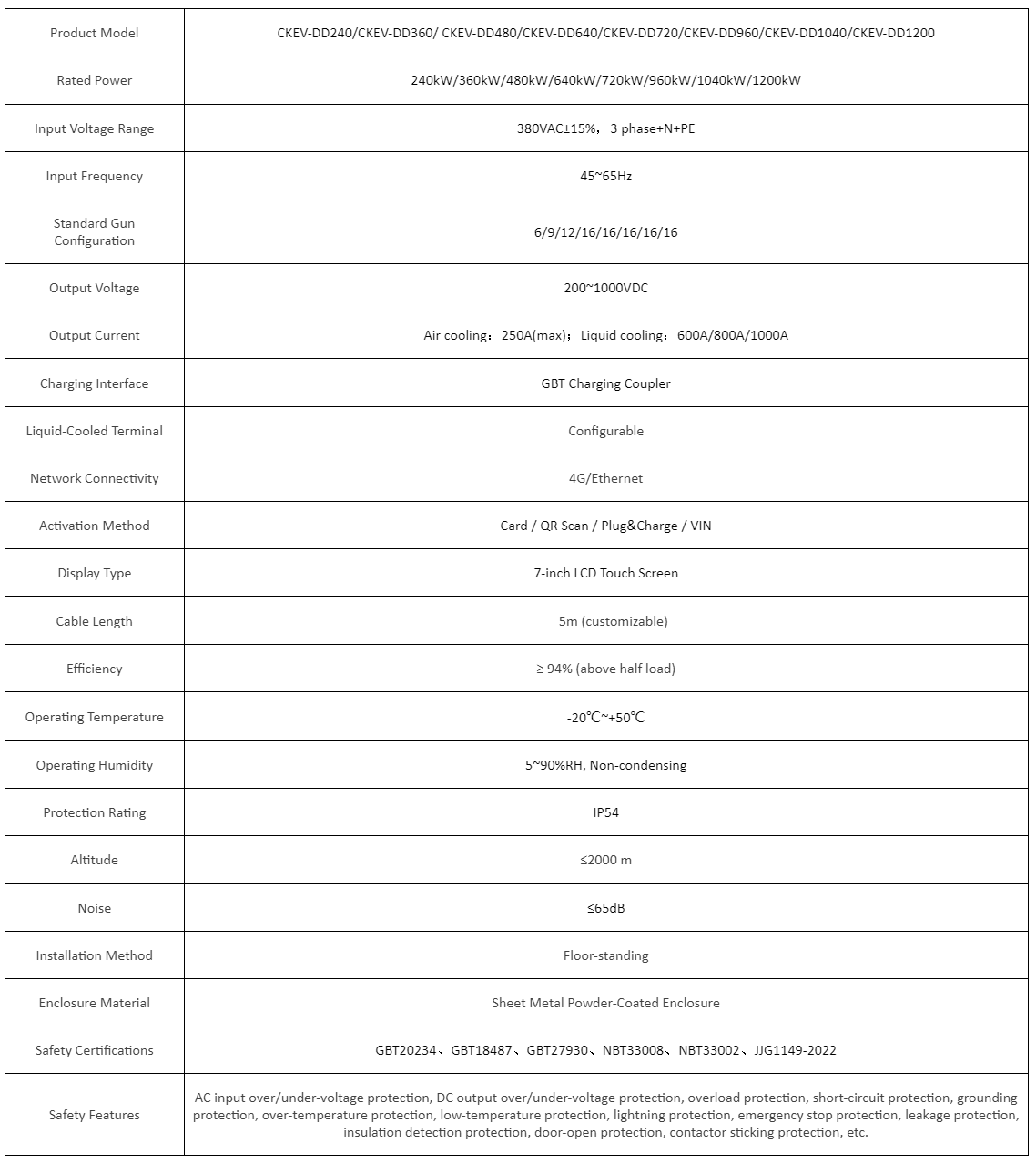

►Technical Parameter

►Product Features

Compatible with New and Old National Standards
Excellent compatibility supporting 2023 new national standards; BMS auxiliary power 12V/24V selectable, compatible with 99% of mainstream vehicle models.
Separated, Silent, Superior Interaction
Separated power cabinet and charging terminal design, compact terminal with low noise for a more user-friendly HMI experience.
High Module Utilization
Full matrix PDU dynamic allocation module, dispatching any module to any gun, achieving 100% module utilization.
Flexible System Configuration
Power pool host supports upward and downward compatibility, terminals support flexible selection of 250A/400A standard terminals and 600A/800A/1000A liquid-cooled supercharging terminals.
Full Coverage of Activation Methods
Supports APP QR scan, VIN code, card swipe, password, and other activation methods. The 360/480/600/640kW flexible charging stacks in this series have all obtained CCC certification reports.
