►Overview

A single battery module is an integrated unit formed by multiple cells connected in series/parallel configurations. Common configurations include 1P16S, 1P48S, and 1P52S, with cooling methods divided into front and side cooling. Each PACK consists of cells connected in series and contains an integrated BMS (Battery Management System) that continuously monitors cell voltage and temperature. The BMS terminates energy storage system charging/discharging when cell abnormalities are detected. The standard battery module employs scientific internal structural design, advanced production processes, and sophisticated battery management systems. Featuring high specific energy, long cycle life, safety, reliability, and wide operating temperature range, it serves as an ideal green energy storage solution for wind/solar energy storage systems, smart grids, and related industries.

►Product features

• High cost-effectiveness with elegant and aesthetically pleasing design;

• Modular immersion and built-in highly efficient insulating coolant;

• IP68 protection rating;

• Plug-and-play operation, convenient maintenance, and highly effective waterproof/dustproof capabilities;

• Features individual cell temperature monitoring, voltage monitoring, and tab temperature sensing, achieving ≤2℃ battery temperature differential control for high efficiency and reliability;

• Standardized modular design with strong scalability and superior charge/discharge performance. Supports 0.3~1P charging/discharging to meet diverse rate, power, and energy requirements across scenarios.

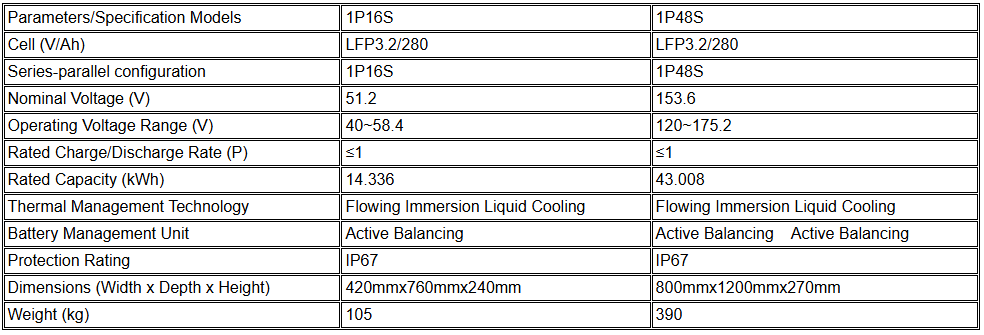

►Technical parameter
