Product Overview

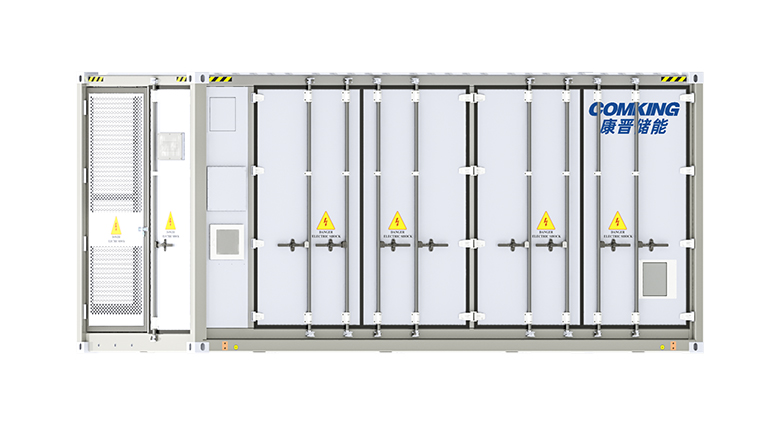

Compared with the CK-NLPL-5000 and CK-NLPL-5000-2 models, the CK-NLPL-5000-3 liquid-cooled container has been upgraded in multiple aspects while retaining the modular design and core system configuration. It adopts the CK-NLPL-104-2 standard module and is equipped with an aerosol fire suppression system and an active balancing system, complying with the policy requirements of most countries. In addition, it features a standard container structure suitable for ocean transportation, which further expands its application scenarios and improves transportation convenience.

Product Features

Safety

Integrated fire protection system with PACK-level detection and spraying, enabling precise fault point localization and disposal.

Three-level fuse protection for combiner cabinets, high-voltage boxes, and modules, achieving millisecond-level safe disconnection of short-circuit currents.

Comprehensive multi-dimensional monitoring (e.g., fire detection, temperature and humidity environmental monitoring, leakage detection) combined with system-level emergency response plans, building an all-encompassing safety network.

Controls the PACK Temperature Difference within 5°C, enhancing system safety and consistency from a thermal management perspective.

Performance

Higher system energy efficiency, with overall efficiency reaching up to 90%.

Lower Auxiliary Power Consumption: Compared to previous-generation products, auxiliary power consumption can be reduced by 20%.

Excellent thermal management performance, utilizing advanced liquid cooling technology such as non-uniform precision-engineered flow channels. This ensures the battery cell temperature differential within the PACK is controlled within 5°C, enabling the system to consistently operate in an optimal state, thereby effectively guaranteeing lifespan and consistency.

Higher Integration Level, larger Single Container Capacity, and superior System Energy Efficiency significantly save space and reduce overall costs, making it the preferred solution for large-scale Source-Grid-Side Energy Storage.

System Advantages

Designed as a standard 20ft container meeting maritime requirements, it has passed rigorous international certifications. With exceptional adaptability to diverse global environments and grid conditions, it features an overall Corrosion Resistance Class C4M. Insulation wool is installed inside all four doors to enhance thermal retention, reduce condensate water formation, and achieve a cycle life exceeding 6,000 cycles (SOH≥80%, DOD≥90%).

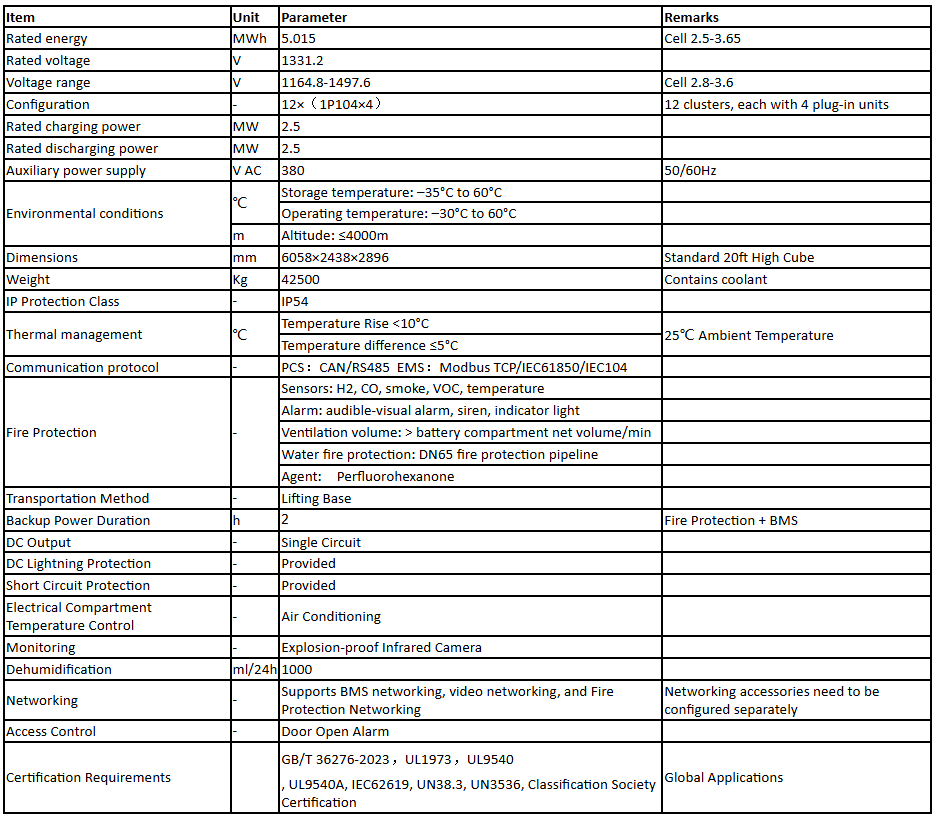

Technical Parameters
