►Overview

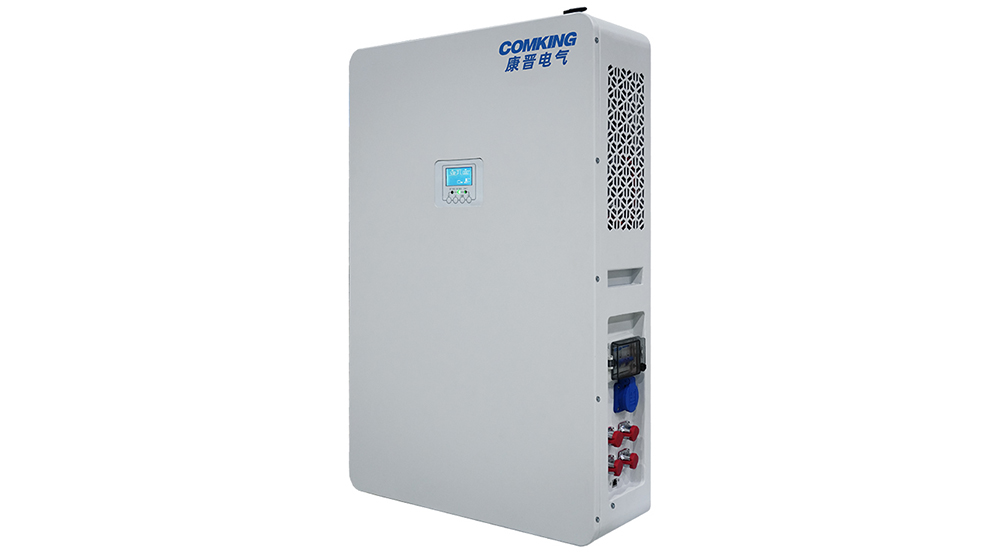

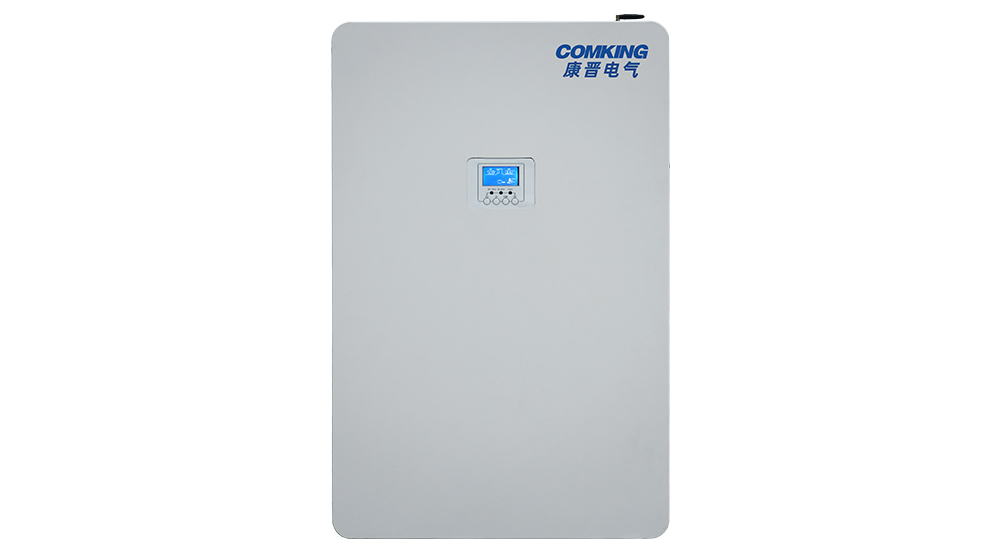

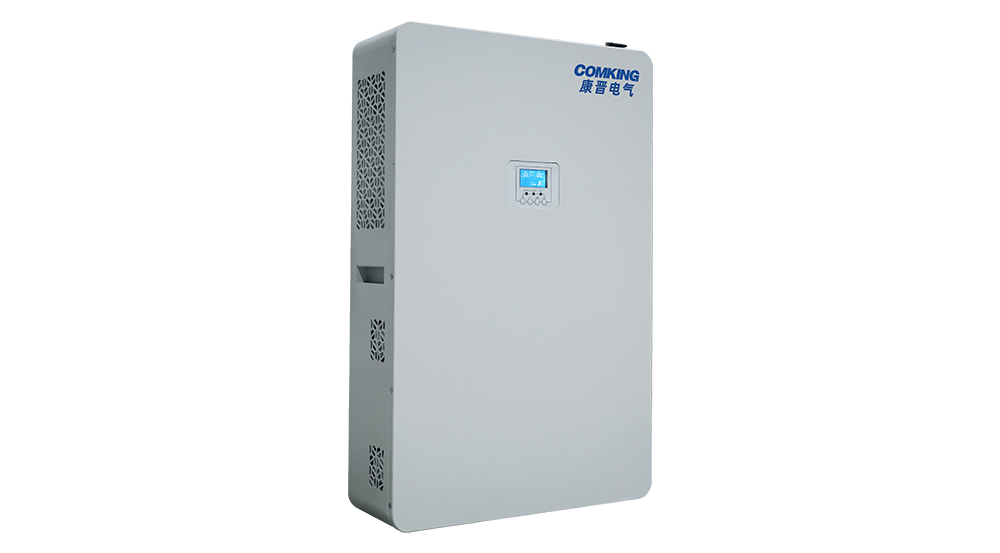

The CK-INL1 Wall-mounted Residential Storage Series uses high-safety LFP cells with capacity covering the commonly used range of 3.8-10kWh. The product integrates a high-efficiency bidirectional inverter, seamlessly connecting PV modules, the grid, and household loads to achieve core functions including PV energy storage, peak shaving and valley filling, and emergency backup power. Its wall-mounted installation saves space, with a sleek design that can be easily deployed in garages or on indoor walls. Real-time monitoring of generation, storage, and consumption, along with mode settings, is available through a user-friendly APP.

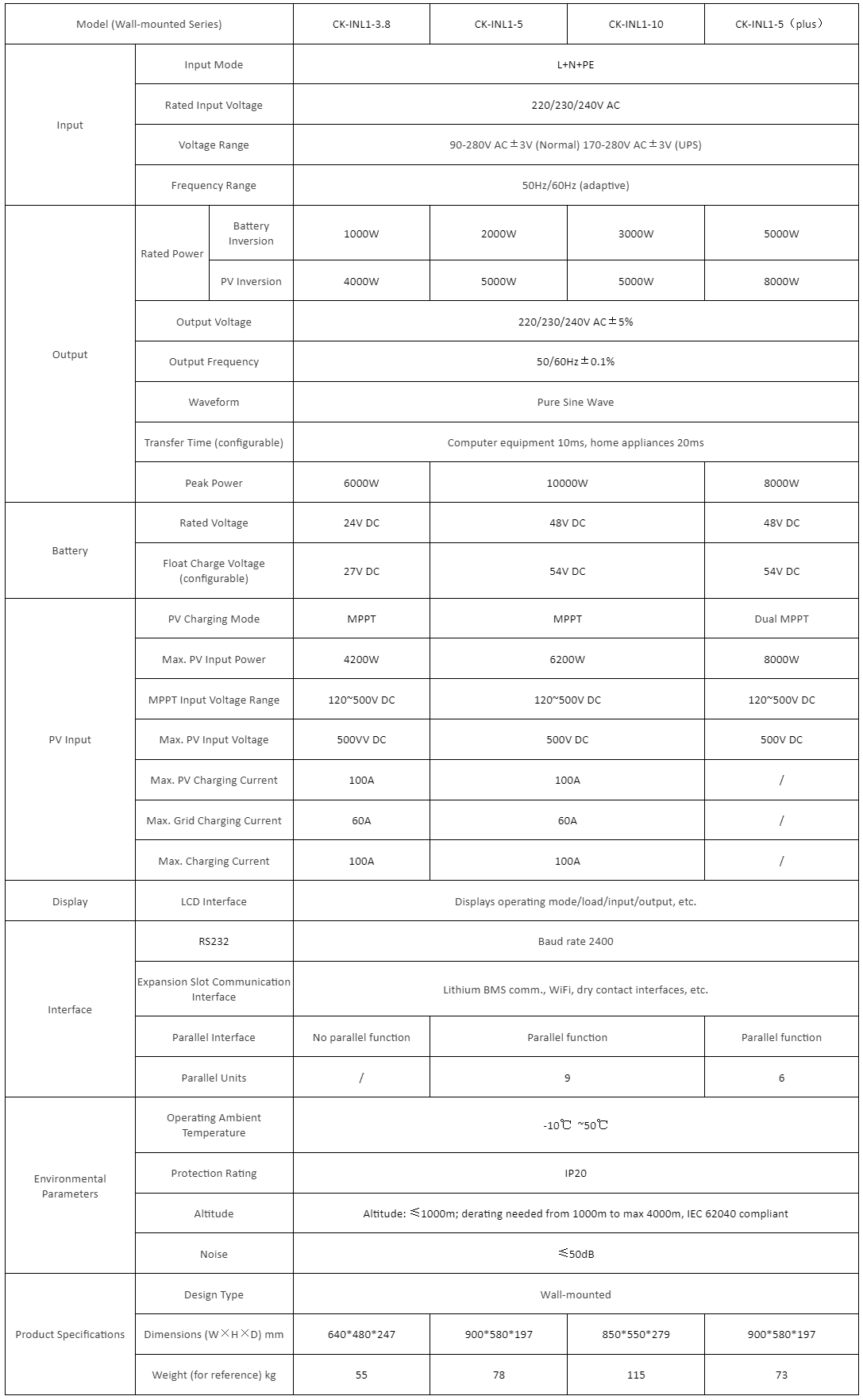

►Technical parameter

►Product features

Space-Saving
Vertical wall mounting completely frees up floor space, suitable for small apartments/compact spaces.
All-Scenario Power Supply
Supports pure off-grid and on-grid operation with millisecond-level seamless switching.
Intelligent Control
Coordinates PV/grid/load, automatically executes peak-valley arbitrage, and supports remote monitoring and strategy adjustment via APP.
