Unshielded top-expansion busbar connectors are used for busbar connections between gas-insulated metal switchgear. The fully sealed and fully insulated connection between the load switch and the bus bar completely avoids the fatal defects caused by high-voltage exposure in bad weather, and the installation is simple and reliable. The bus connector is composed of a busbar, a terminal connector and an intermediate connector, and the length of the busbar is customized according to the actual needs.
Features：
- Made of high-quality EPDM rubbers, which presents excellent performance in resistance against electric
corona, free discharge and weather;
-Fully insulated, fully sealed.

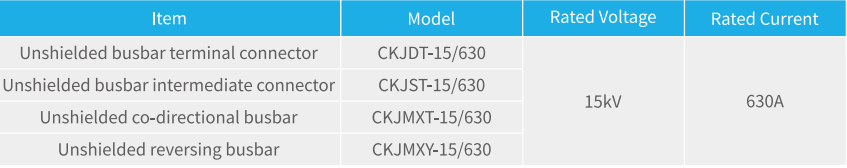

Model Description：

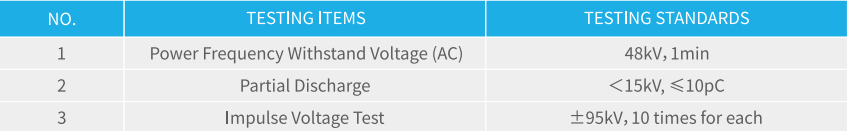

Main Electric Performance：
标准：
GB/T 12706.4 IEC60502-4 DIN 47636 EN50181
Dimensions and Pictures：

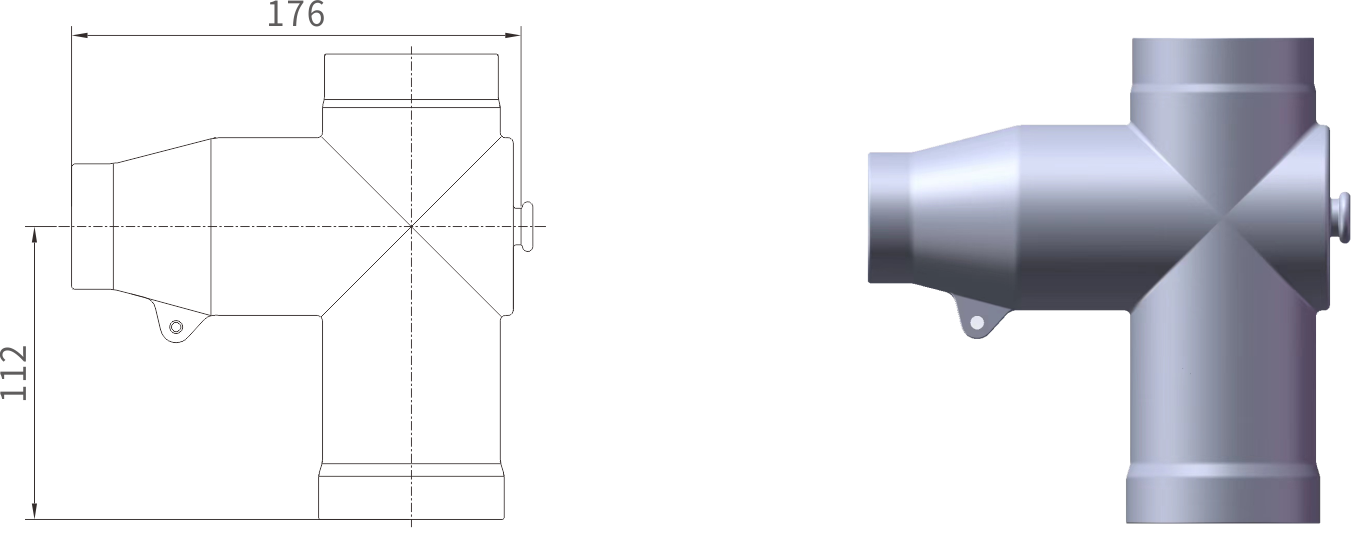

Unshielded busbar terminal connector

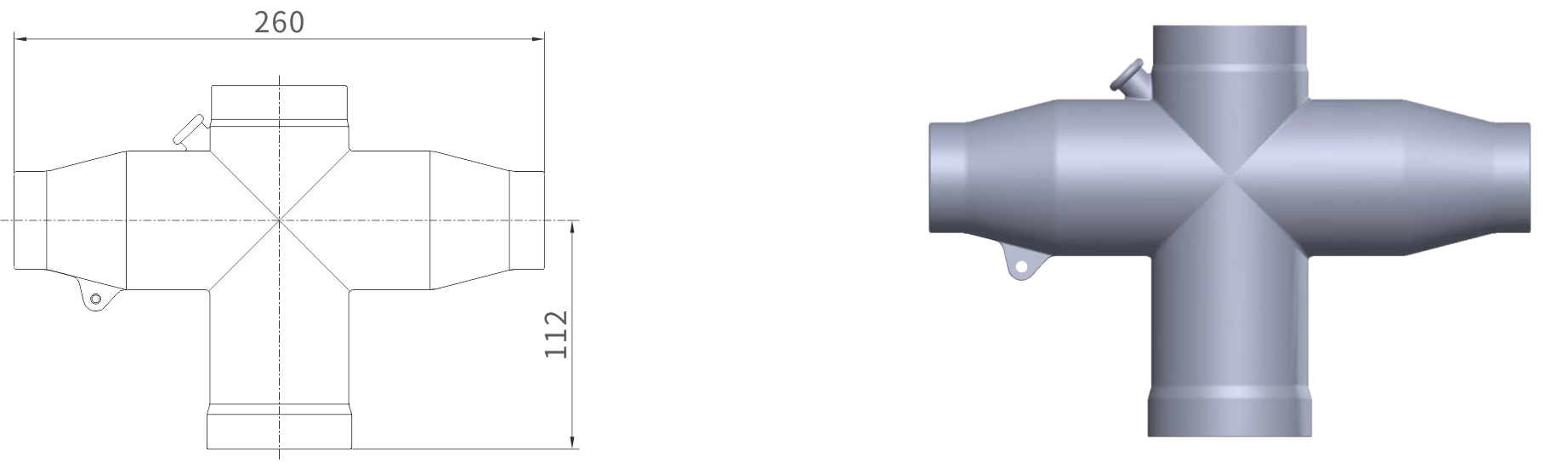

Unshielded busbar intermediate connector

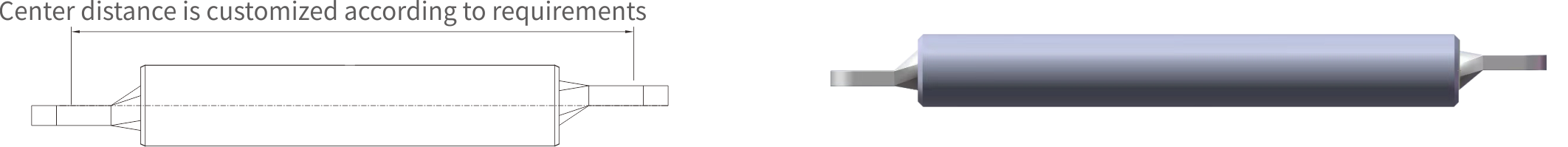

Unshielded co-directional busbar

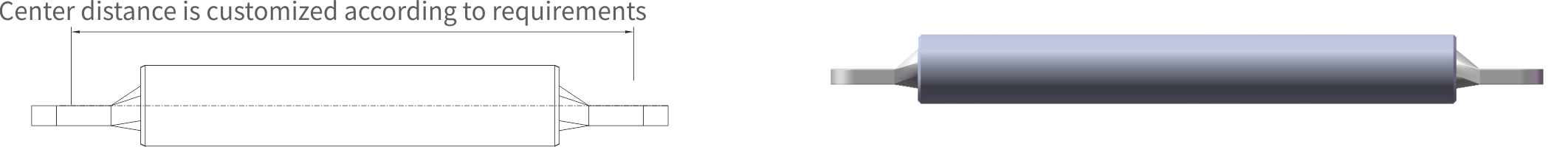

Unshielded reversing busbar
