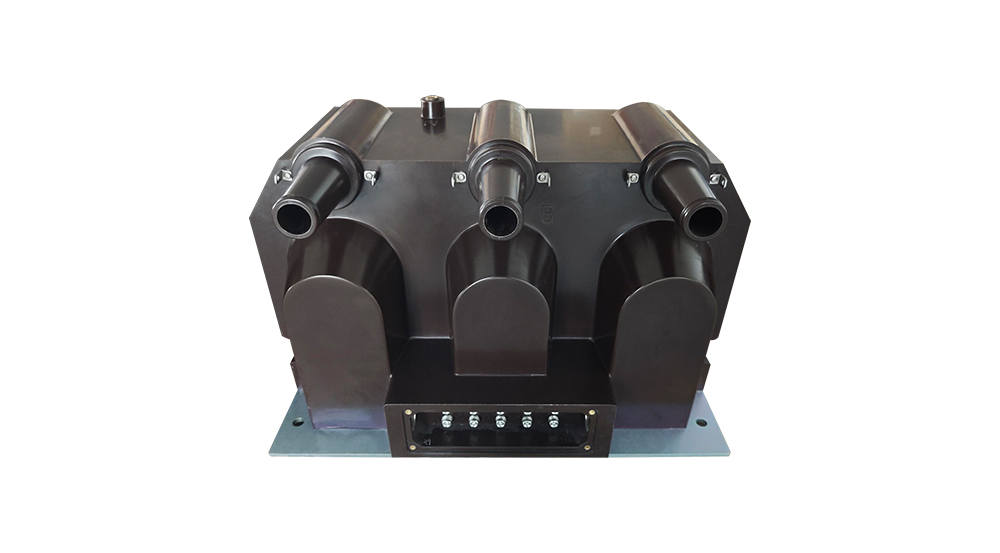

This series of transformers adopts a pillar-type structure with fully enclosed epoxy resin casting. The transformer consists of three independent windings connected in a Y-Y configuration. During operation, its neutral point is externally connected to a harmonic suppression device, enabling voltage measurement and protection for the three-phase voltage system. This model features a built-in high-voltage fuse on the primary side, which effectively protects the transformer body during system faults. It saves installation space with its compact size and lightweight design, and is suitable for installation in any position and orientation.

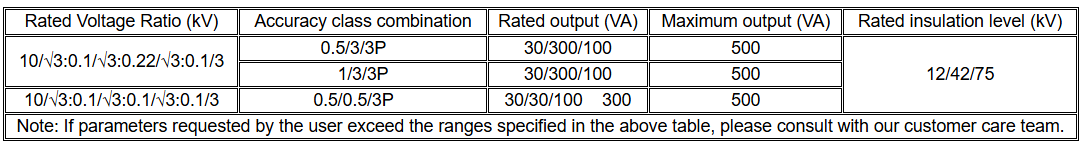

►Parameter Table

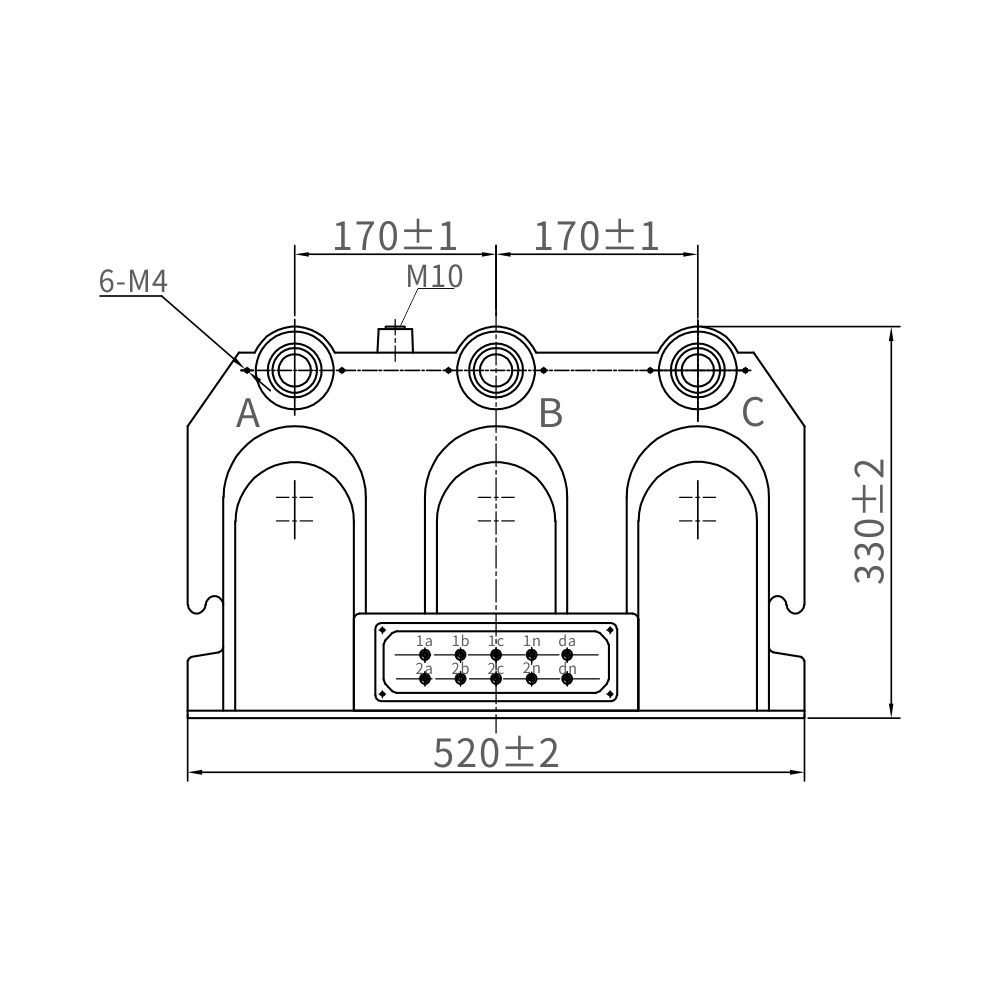

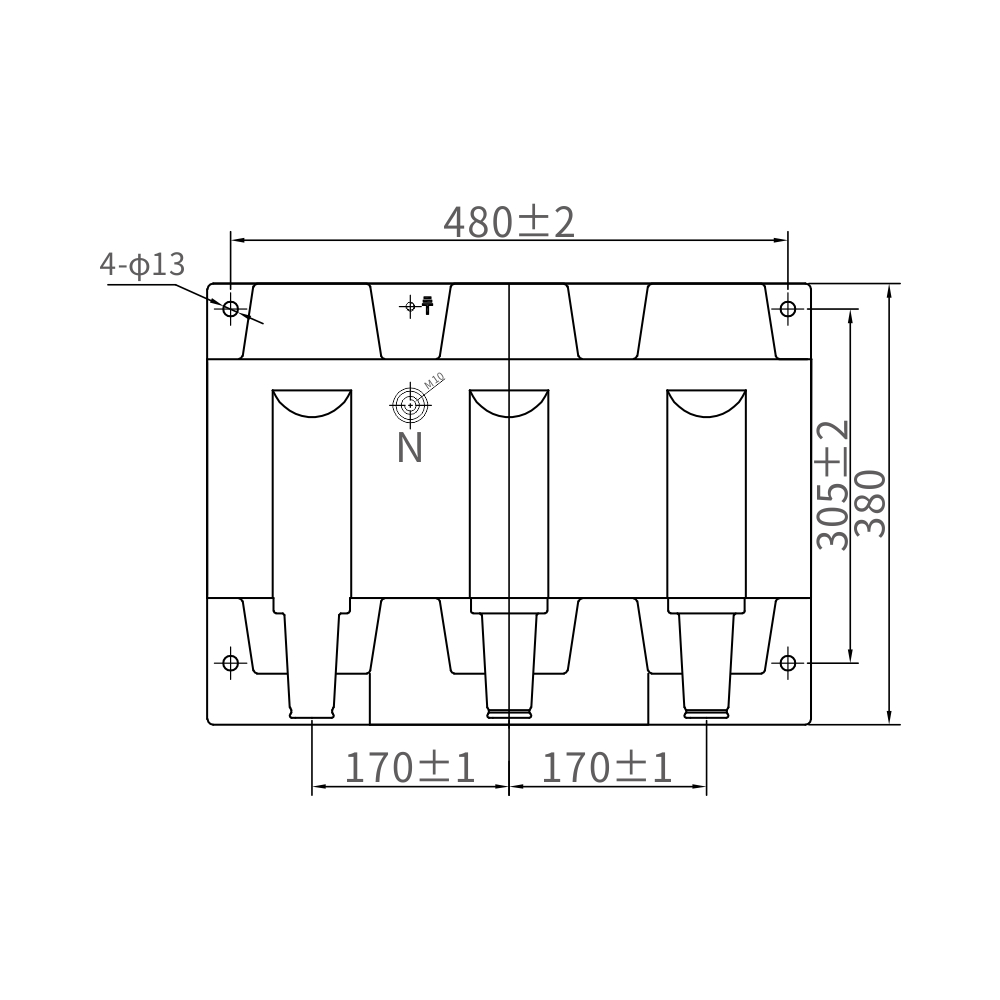

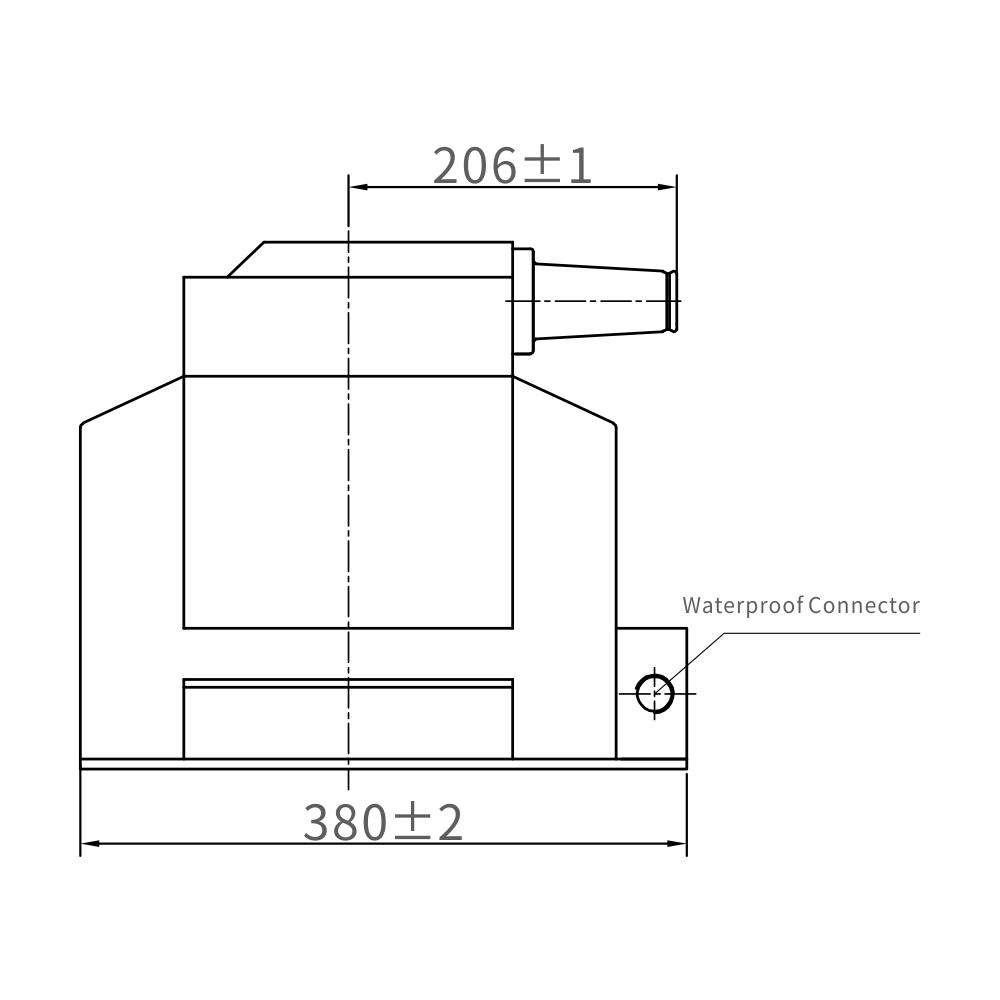

►Outline dimension drawing
