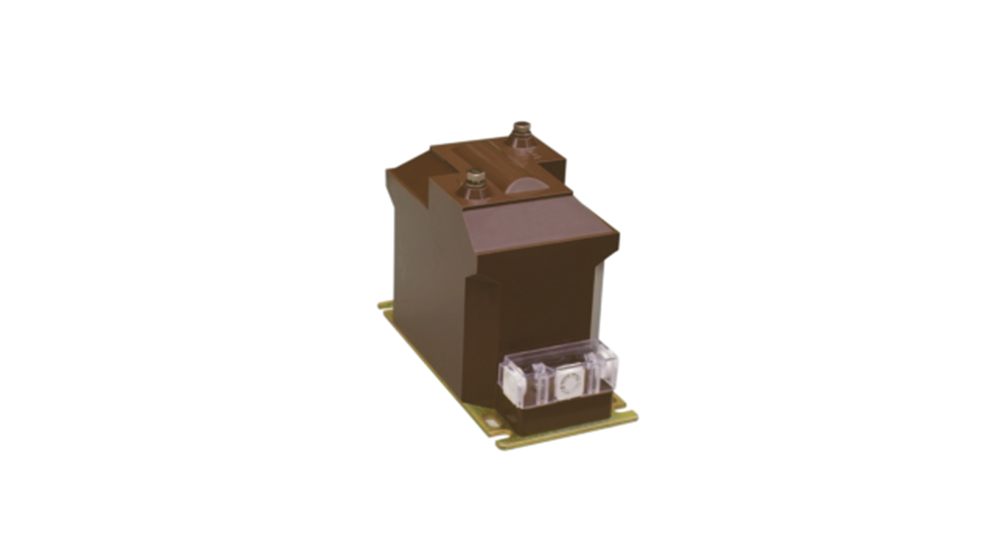

JDZ10-3/6/10 Voltage Transformer

BACK
Share to:
0

This type of transformer is a voltage transformer with an epoxy resin fully enclosed cast insulation structure, suitable for AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 3, 6, 10kV and below. It is used for voltage measurement, energy metering, and relay protection. The product features a compact size, light weight, and offers multiple installation dimensions and methods.
