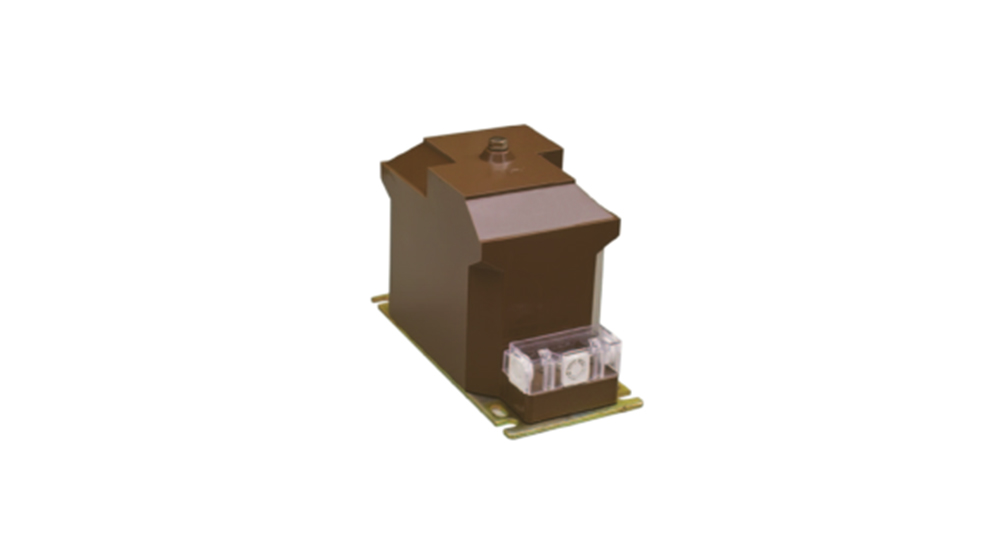

This transformer adopts an epoxy resin fully enclosed cast insulation structure and is suitable for AC power systems with rated frequencies of 50/60Hz and rated voltages up to 3kV, 6kV, and 10kV. It serves for voltage measurement, energy metering, and relay protection. The product features compact size, light weight, and offers multiple installation dimension options.

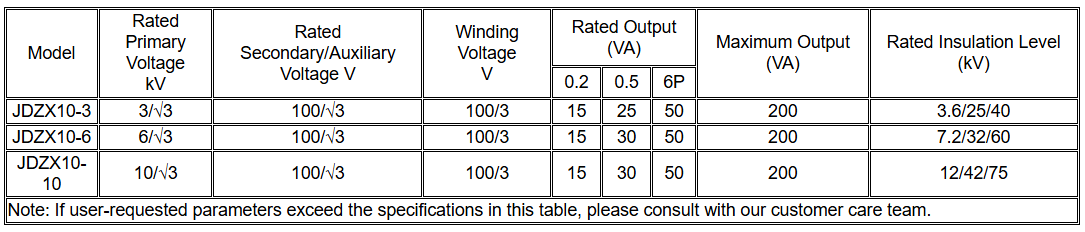

Parameter Table

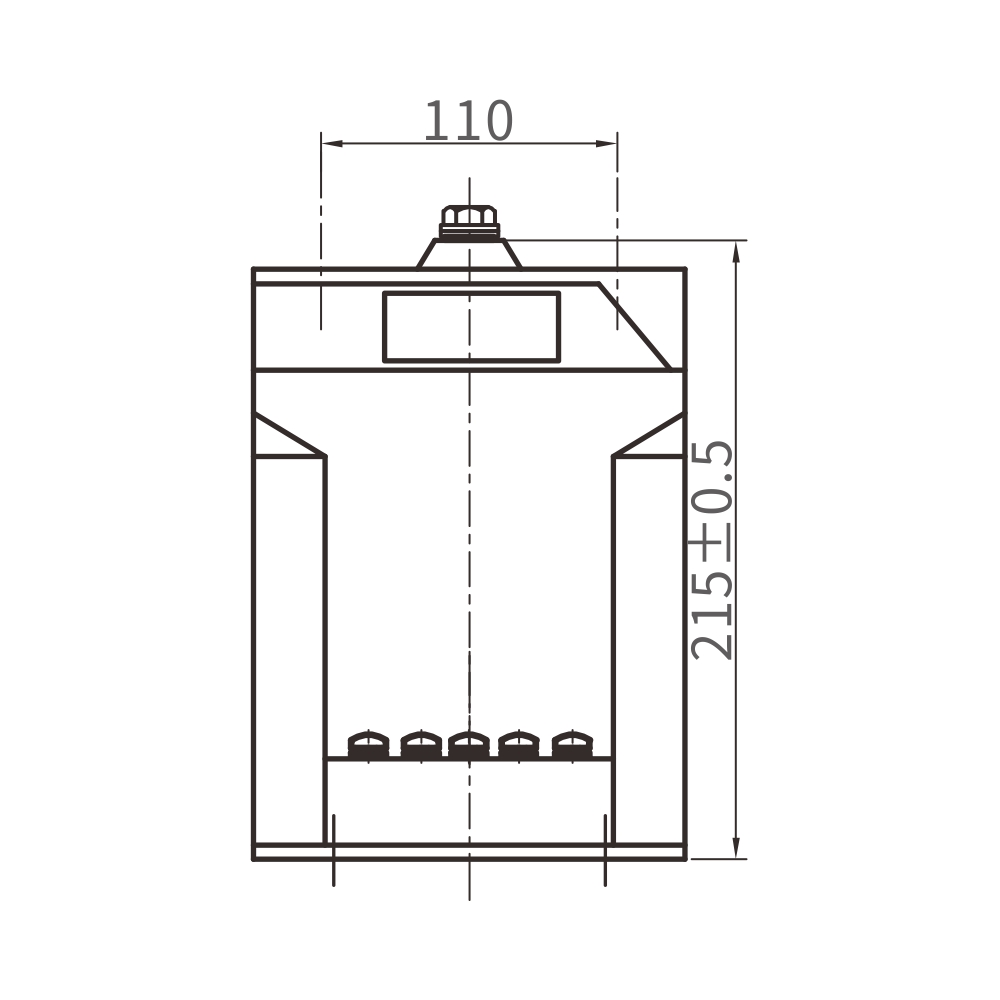

 Outline Dimensions Diagram
