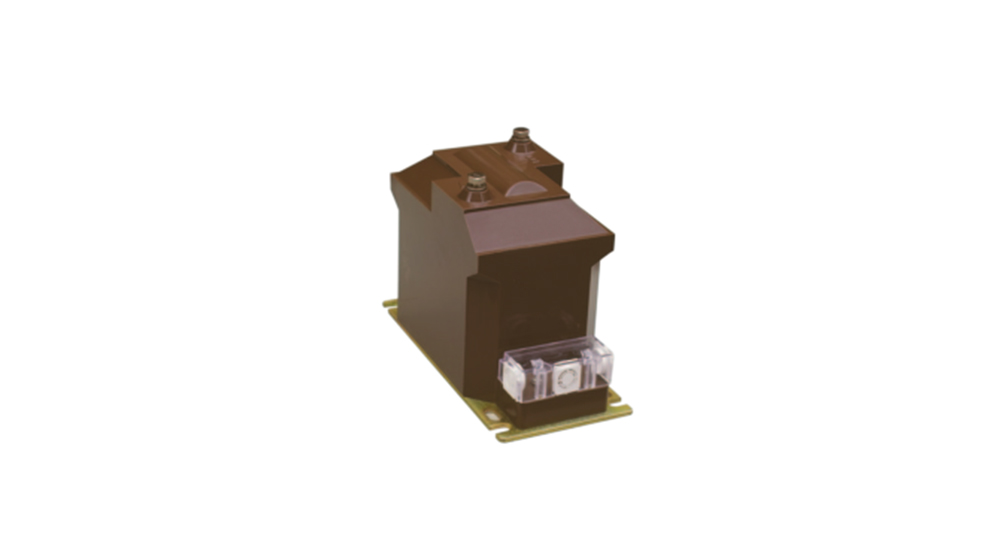

This transformer is an epoxy resin fully enclosed cast insulation structure voltage transformer, suitable for AC power systems with rated frequencies of 50/60Hz and rated voltages up to 3kV, 6kV, and 10kV. It is designed for voltage measurement, energy metering, and relay protection applications. The product features compact dimensions, lightweight construction, and offers multiple installation dimension options.

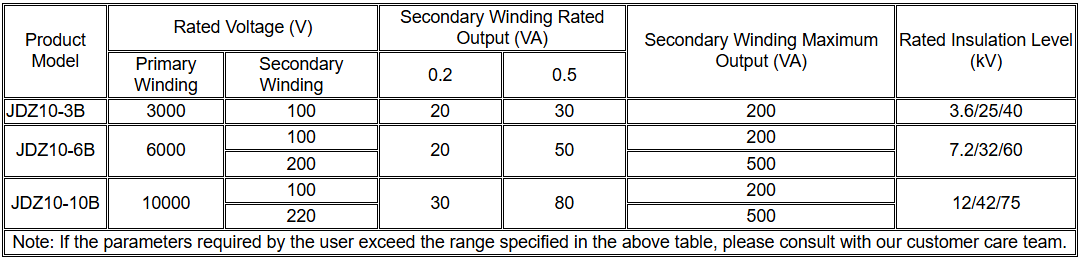

Parameter Table

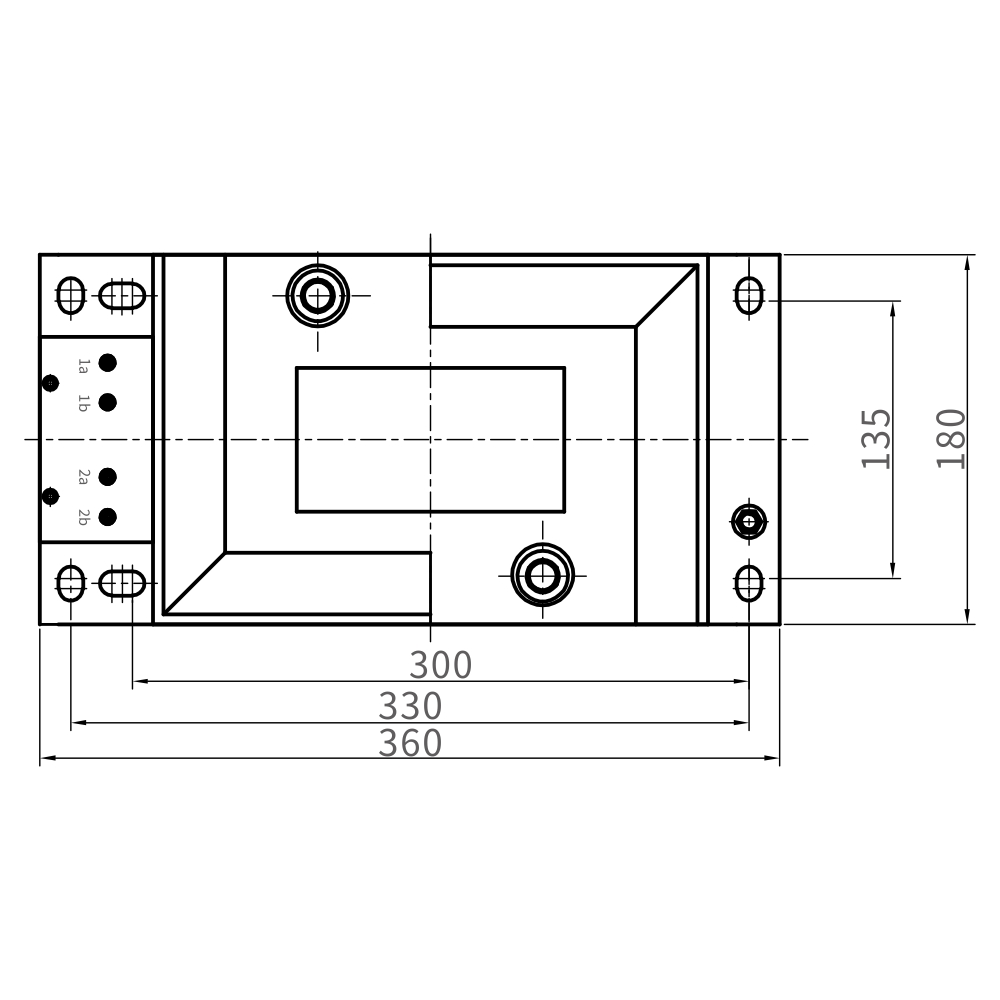

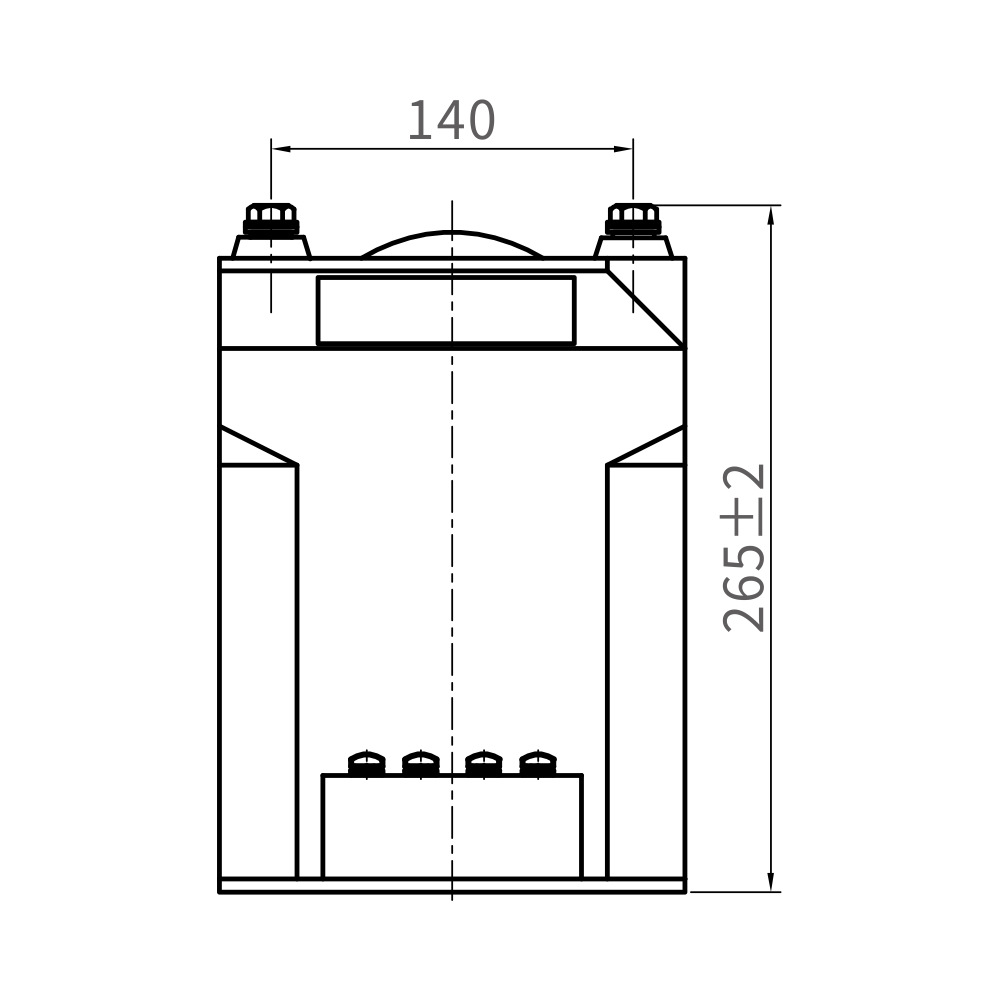

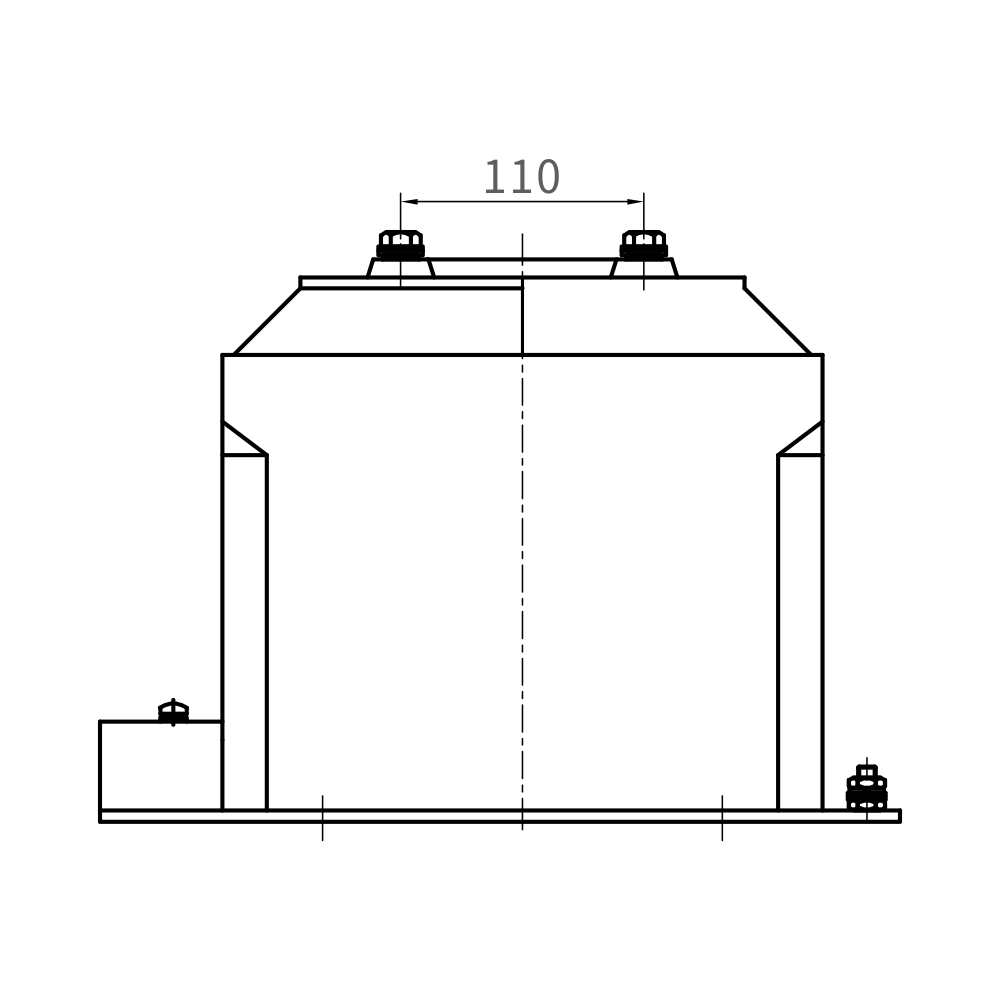

Outline Dimension Drawing
