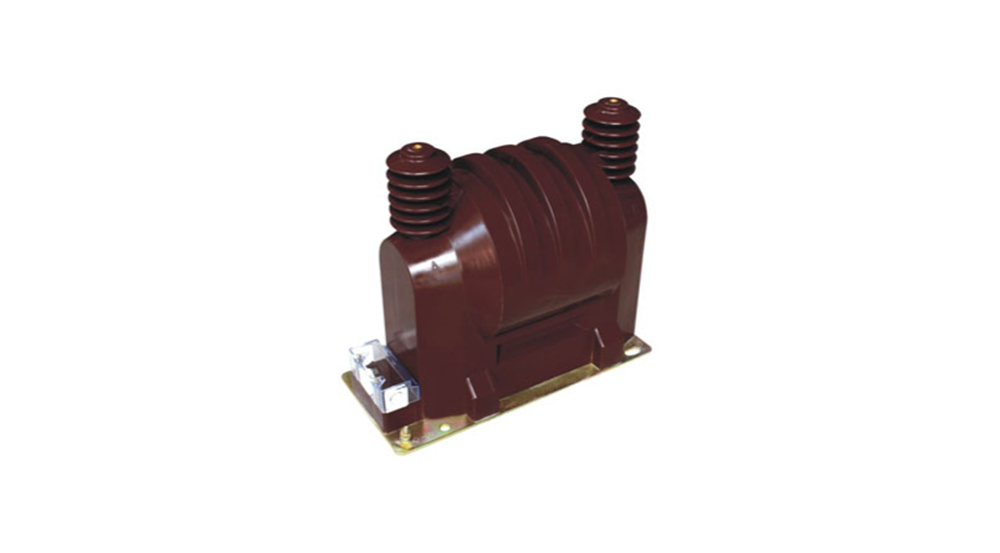

This transformer features an epoxy resin fully enclosed cast insulation structure, suitable for AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 20kV or below. It serves for voltage measurement, energy metering, and relay protection. The product boasts compact dimensions, lightweight design, and offers multiple installation dimension options.

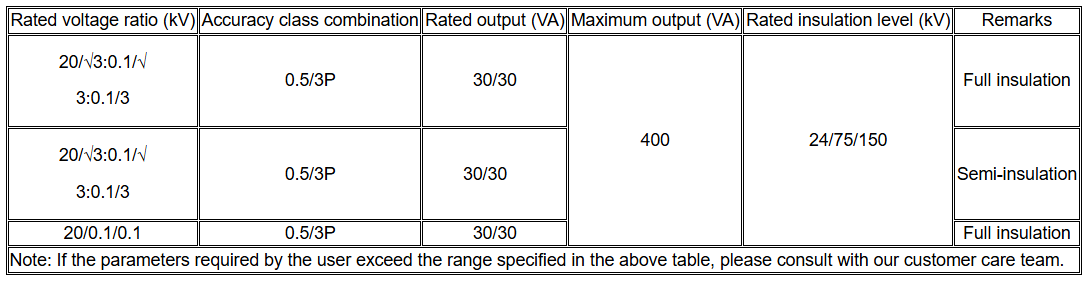

Parameter Table

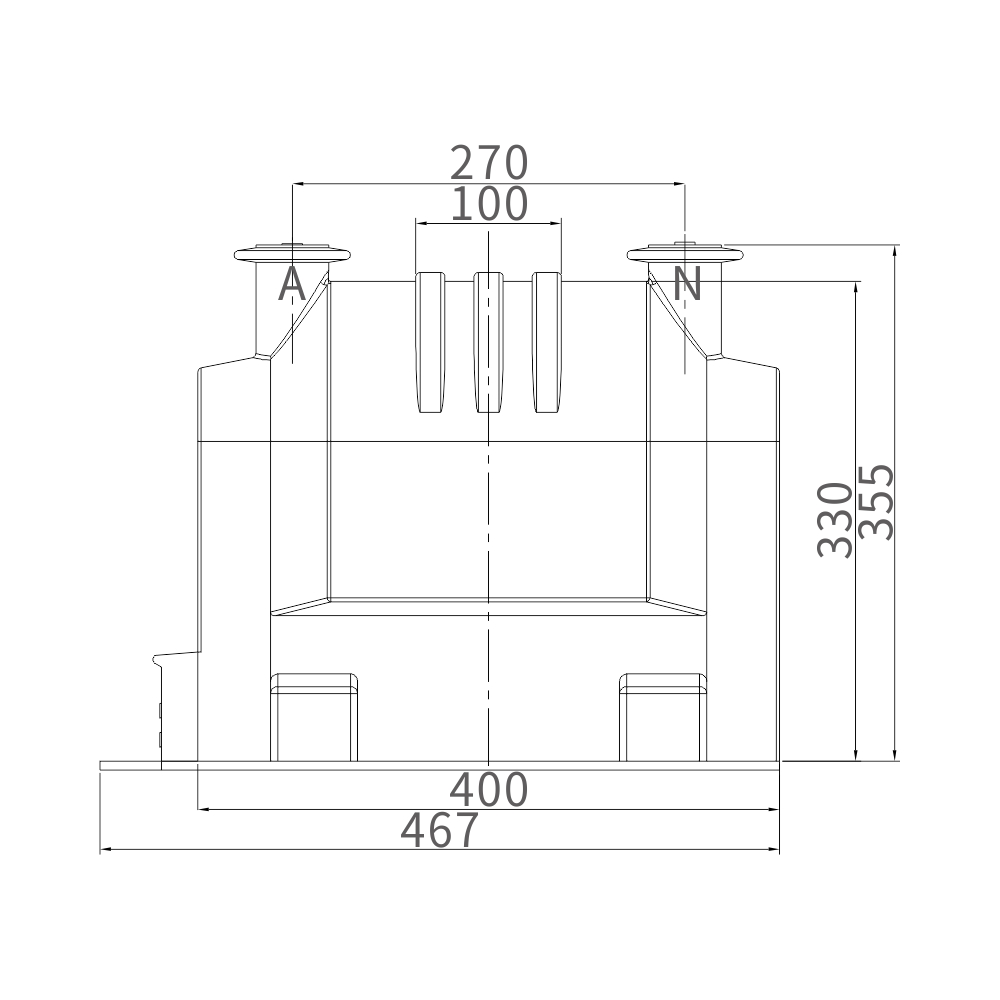

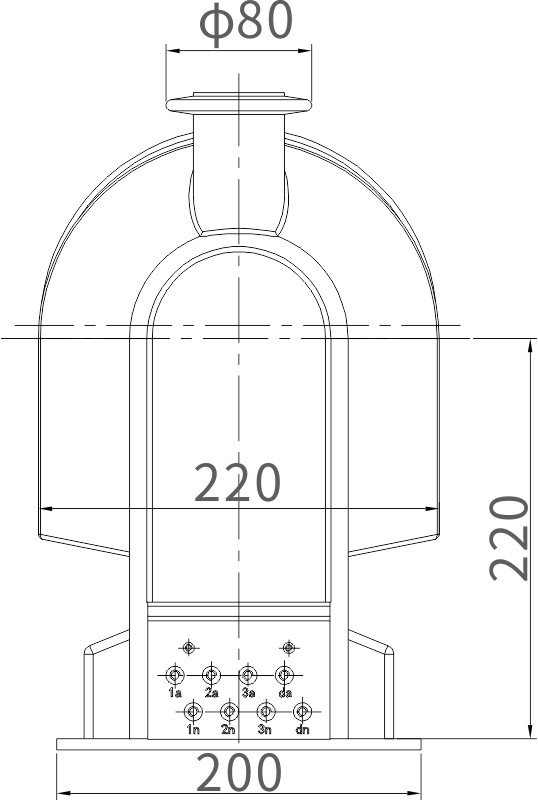

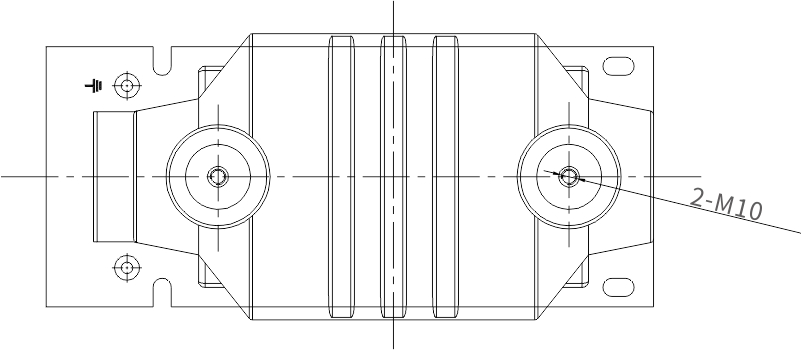

Outline Dimension Diagram
