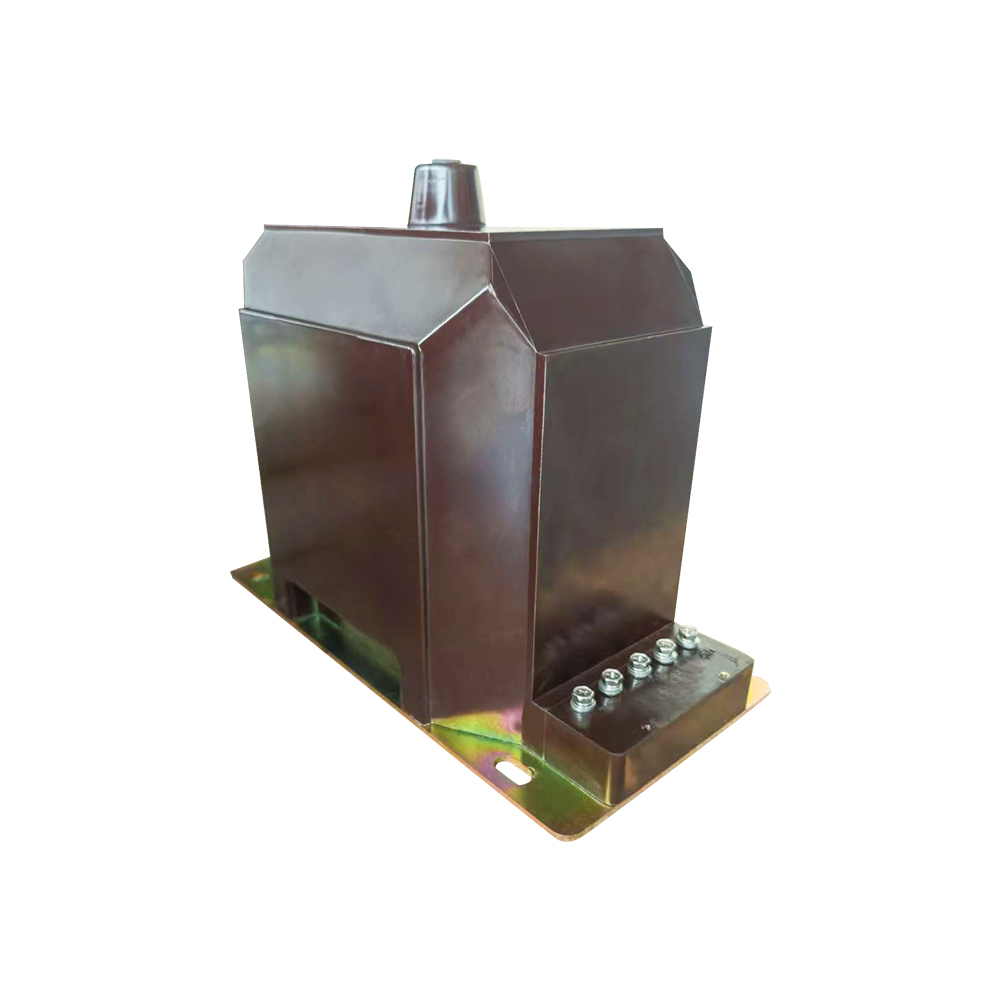

JDZX-20 Voltage Transformer

This type of voltage transformer features an epoxy resin fully enclosed cast insulation structure. It is applicable to AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 20kV and below, and is used for voltage measurement, electric energy metering and relay protection.

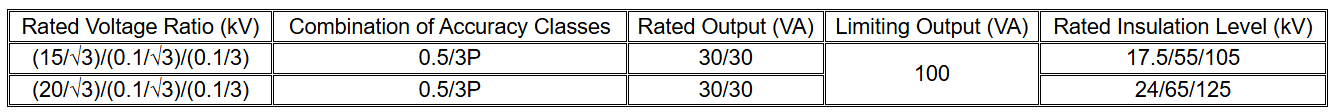

Note: If the parameters required by the user exceed the range in the above table, please negotiate and confirm with our company.
