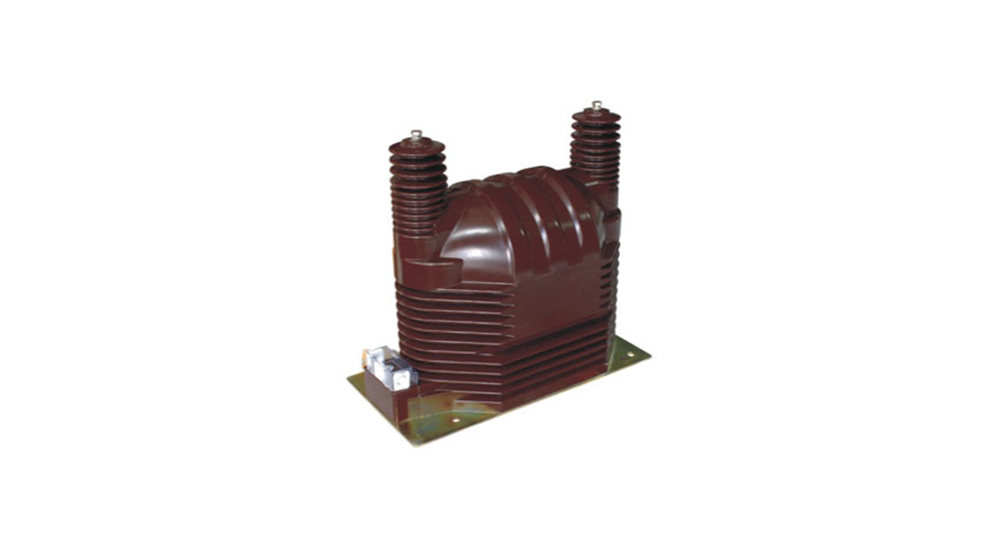

This transformer features a fully enclosed epoxy resin cast insulation structure, suitable for AC power systems with rated frequencies of 50/60Hz and rated voltages up to 35kV. It is designed for voltage measurement, energy metering, and relay protection applications. The product offers compact dimensions, lightweight construction, and supports multiple installation dimension configurations.

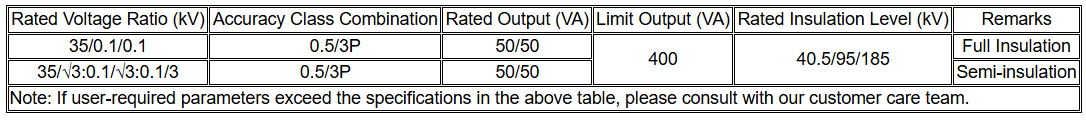

 Parameter Table

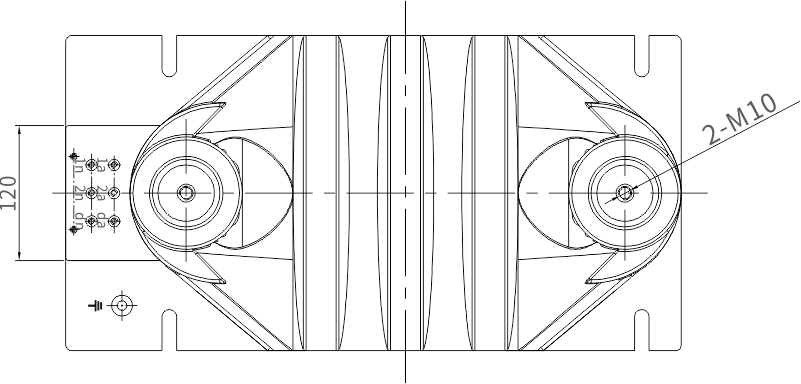

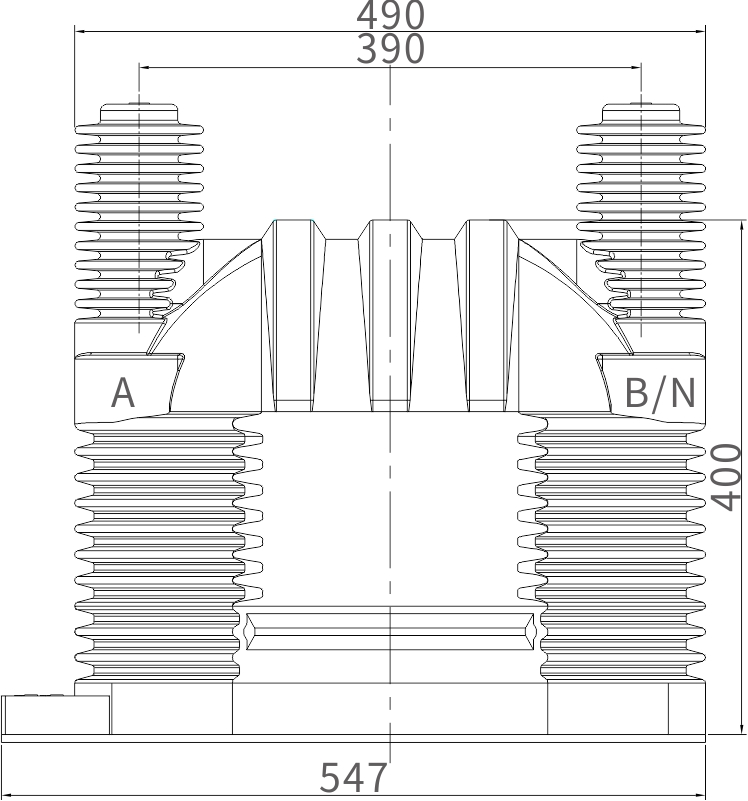

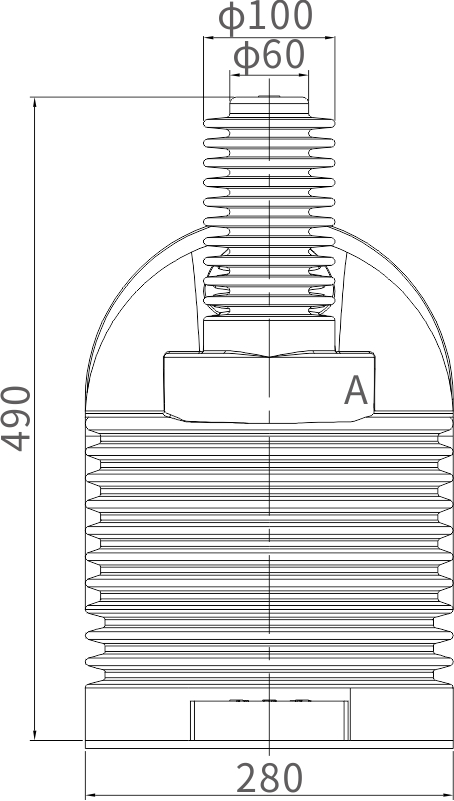

Outline Dimensions Diagram
