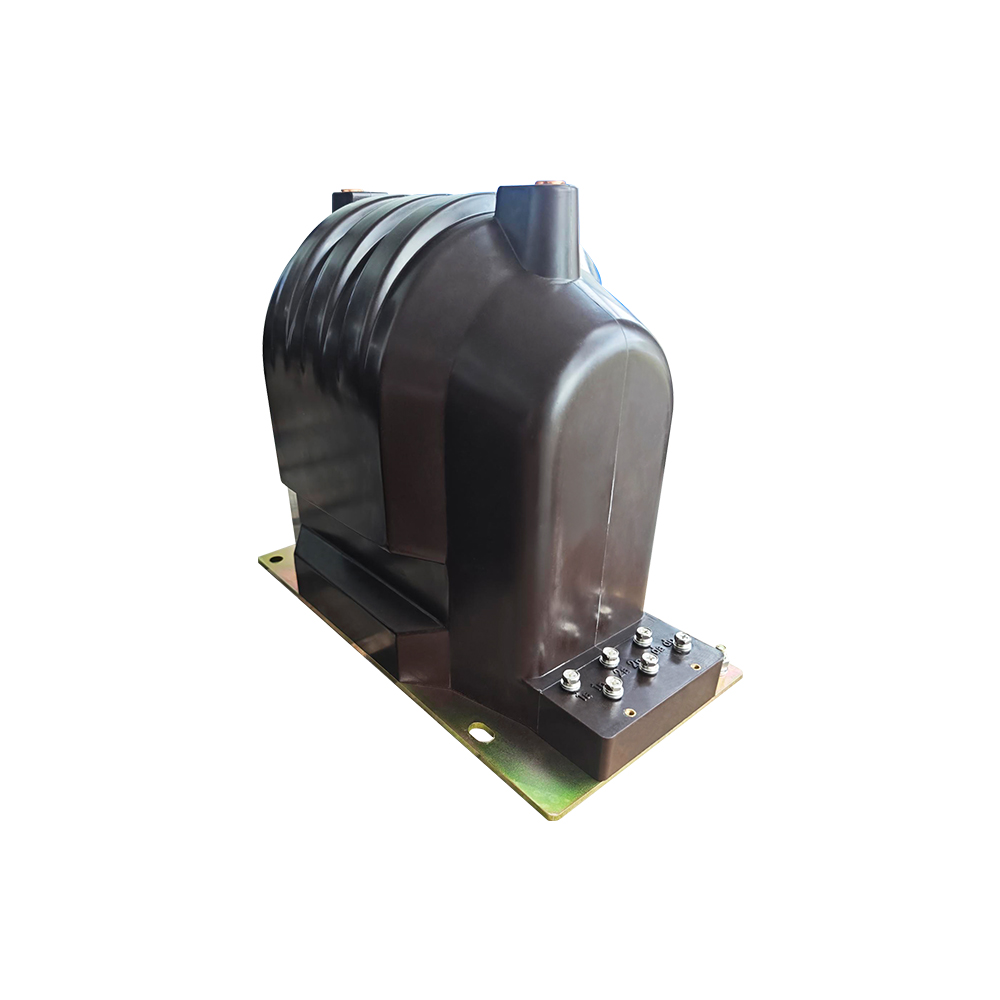

JDZ10-10C Potential Transformer

This type of potential transformer features an epoxy resin fully enclosed cast insulation structure. It is applicable to AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 10kV and below, and is used for voltage measurement, electric energy metering and relay protection. The product is compact in size, light in weight, and available with a variety of mounting dimensions.

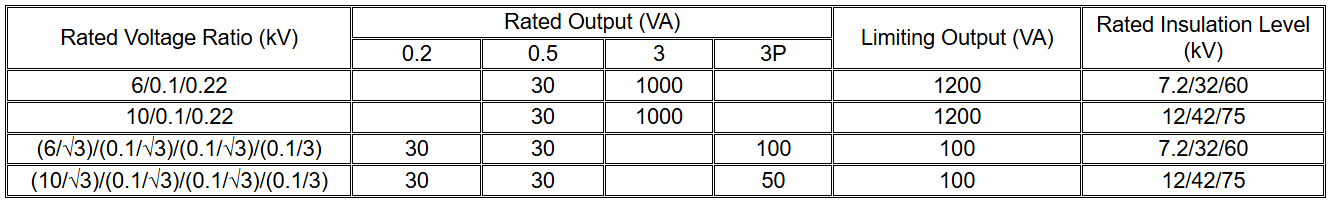

Note: If the parameters required by the user exceed the range in the above table, please negotiate and confirm with our company.
