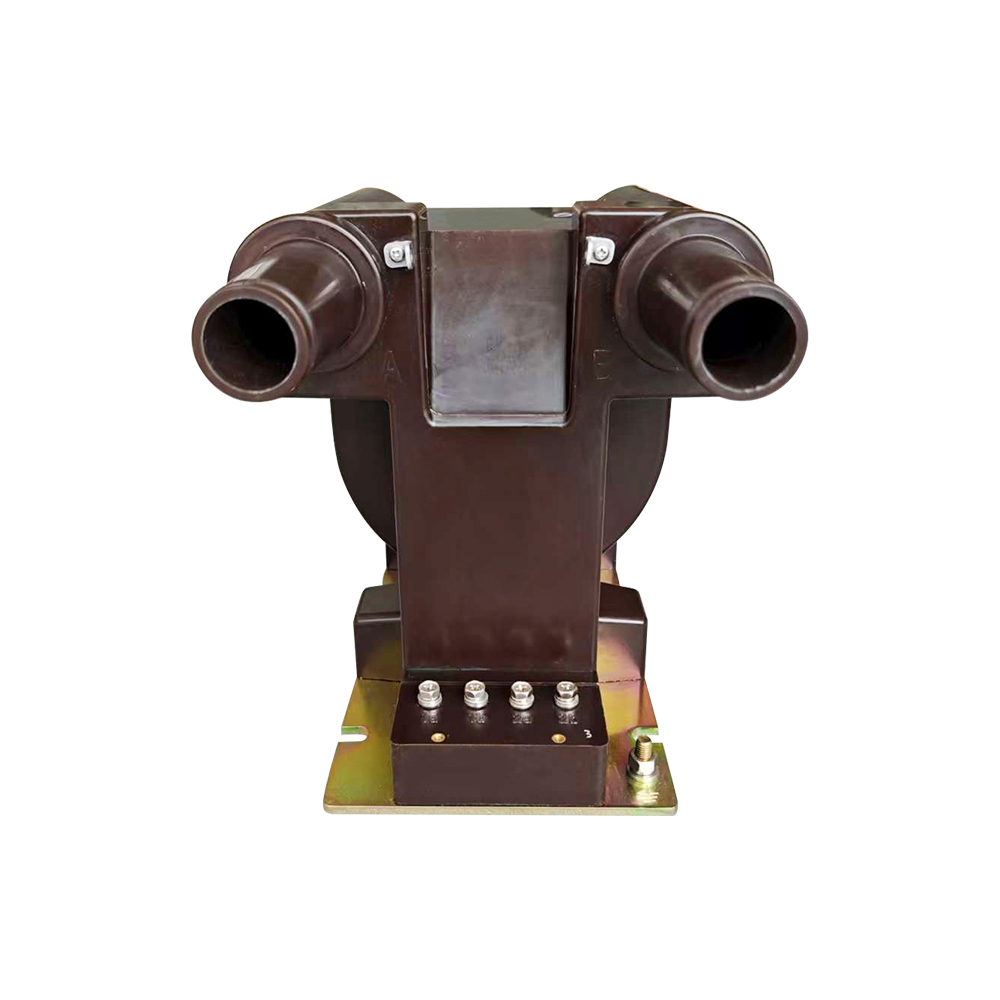

JDZ12A-10R Single-phase Voltage Transformer for Ring Main Unit

This series of Voltage Transformers features a post-type structure with fully enclosed epoxy resin casting insulation. It is applicable to AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 10kV and below, for the purposes of current measurement, electric energy metering and relay protection. This type of transformer is equipped with a built-in high-voltage fuse on the primary side, which can effectively protect the transformer body in the event of a system fault and save installation space. With its compact size and light weight, it is suitable for installation at any position and in any direction.

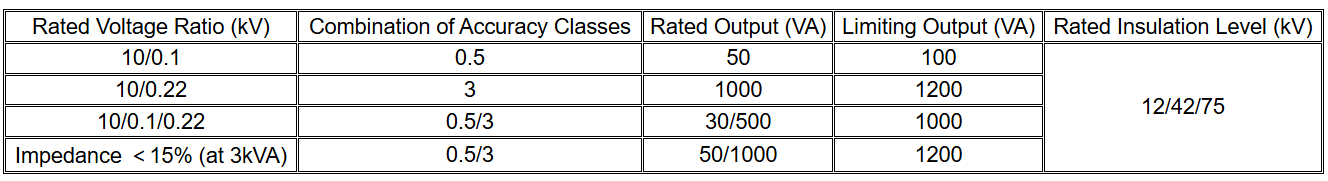

Note: If the parameters required by the user exceed the range in the above table, please negotiate and confirm with our company.
