15kV PT Connection Kit

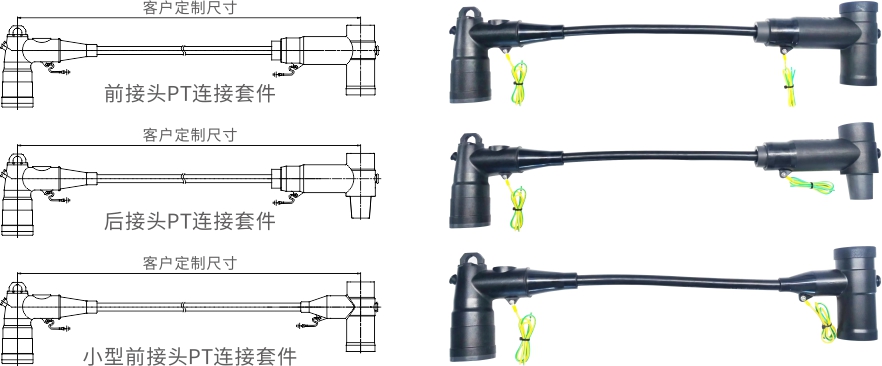

The PT connection kit is designed for electrical connection between two pieces of equipment, enabling the connection of the potential transformer (PT) and the gas-insulated switchgear unit. The kit can be customized according to the actual distance between the two connected devices. Cross-linked polyethylene cables or rubber flexible cables are selectable based on the bending of cable routing in the cable compartment, and front or rear connectors can be matched for use in accordance with actual requirements.

Features

-High-quality power cables; flexible cables allow for easy bending and can be customized to the required length;

-Adopting a fully insulated, fully sealed and fully shielded structure, featuring easy installation and a compact design;

-Connectors are made of high-quality ethylene propylene diene monomer (EPDM) rubber raw materials, with excellent resistance to corona, free discharge and weathering.

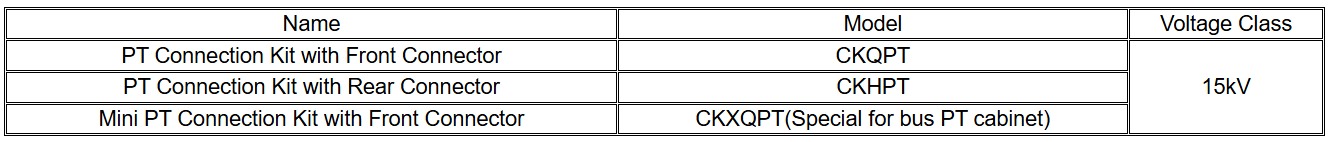

Model Description of PT Connection Kits with Front/Rear Connectors

Main Electrical Performance
