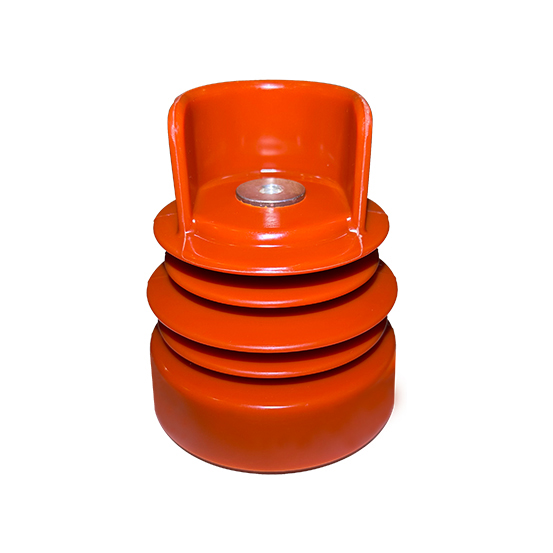

Suitable for connection of SF6 RMU, it works in conjunction with side extension busbar connectors or sealing plugs.

►Characteristics

-This bushing is designed in accordance with the standardized requirements of the State Grid, the applicable voltage of this product is 12kV, and the applicable current is 630A;

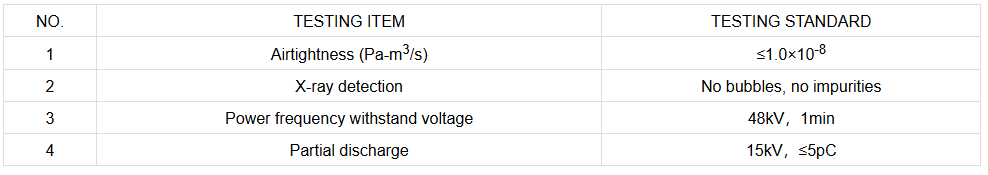

►Main Electrical Performance

►Standard

GB/T 4109-2008、GB/T 11022-2020

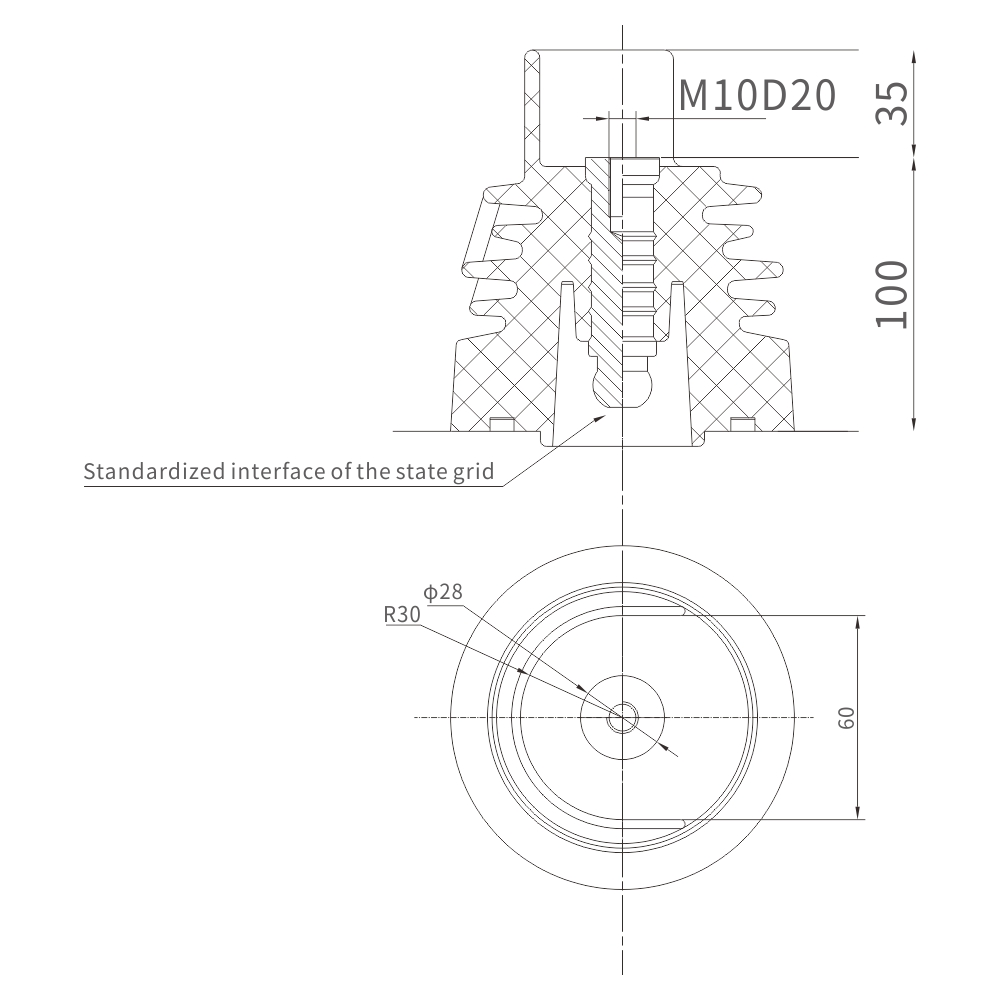

►Dimensions and Figure
